Shock Absorbers
KOGANEI offers innovative solutions and unmatched performance that meet and exceed demands from OEM customers. Ultra-efficient compact designs allow engineers to reduce machine footprints or accommodate future expansion and designs.
Use KOGANEI products to:
- Improve the performance and reduce the size of your next generation machine
- Optimize design with a wide variety of styles and sizes for most any application
- Reduce overall dimension of your pneumatic circuit
- Improve OEE through reduced downtime and maintenance
- Expedite deliveries with product stocked in USA
KOGANEI is committed to your success from concept, to initial design, to final delivery and beyond.
-

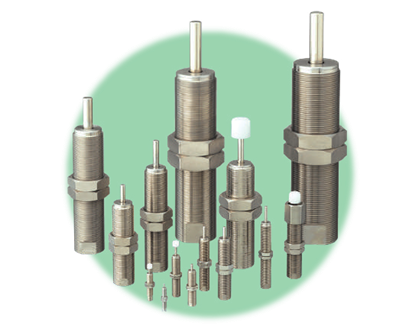

Standard - Fixed
- Basic Version Now with Higher Energy Absorption Capabilities
- Pressure Resistant Version to Seal Directly into Piston Chamber
- End Position Sensing Version for Electrical Feedback
- Thread Sizes from M4 to M48 and from 10-32 to 1 3/4-12
-

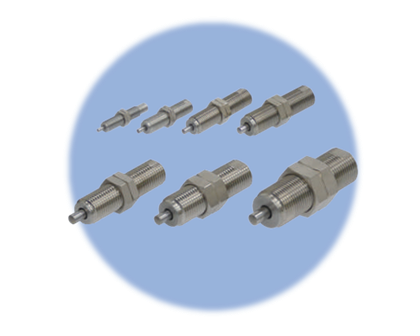

Side Load Resistant
- Absorbs Offset Loads from Rotating or Angular Motions
- Thread Sizes from M6 to M20
- Life Expectancy of Over 2 Million Operations
- Compliant with H1 Grade Food Equipment Specifications
-

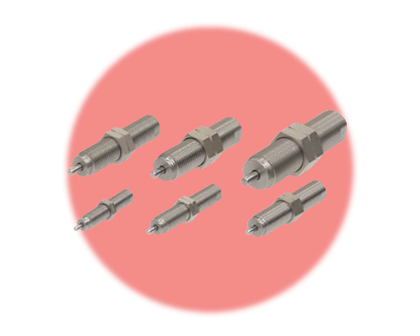

Harsh Environment Resistant
- Absorbs Loads in Oily, Wet, or Dusty Application Conditions
- Stainless Steel Body and Optional Mounting Nuts
- Integrated Filter to Prevent Particle Ingression
- Compliant with H1 Grade Food Equipment Specifications
-

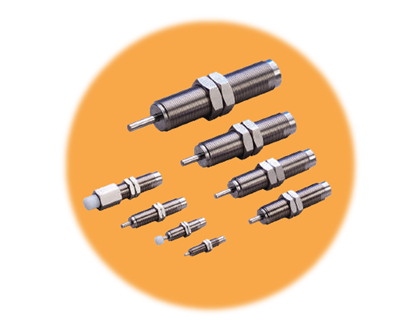

Cleanroom / Low Particle
- Capable of JIS/ISO Class 5 Equivalent Cleanliness
- Thread Sizes from M4 to M25 and 10-32 to 1-12
- Particle Pocket Structure to Prevent Scattering of Dust
- Silicone Free Polymer Materials and Oil
-

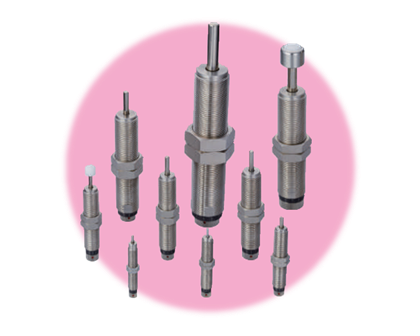

Adjustable
- Adjustment Knob to Fine Tune for Impact Speed and Load
- Thread Sizes from M6 to M42 and from 1/4-32 to 1 3/4-12
- Life Expectancy of 3 Million Operations
- Compliant with H1 Grade Food Equipment Specifications
