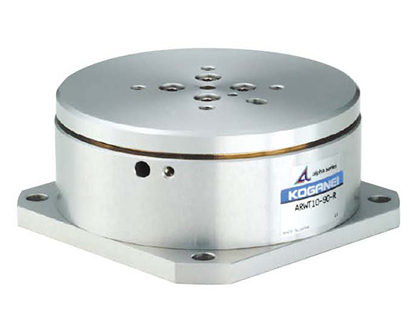

Ensure fixed angle and direction rotation with the RWT series that utilizes an air supply and ratchet mechanism. Three rotation angle specification models for both clockwise and counterclockwise direction. OEM Applications that require compact physical size and the highest torque specification are ideal for the RWT Series. The Selection Guide provides a summary of the RWT Series Index Table 2 different variations available. RWT Series Index Tables offer:

• Double Acting Piston Driven Index Table
• 45°, 60° or 90° Index Angles Available
• Internal Gear and Ratchet Design Provides +/- 0.2 Degree Rotation Accuracy
• Integrated Sensor Switch Available
• Location Pin Hole Standard for Precision Installations
• RoHS Compliance

Operations
Double Acting Piston Index Counterclockwise Rotation
Double Acting Piston Index Clockwise Rotation
