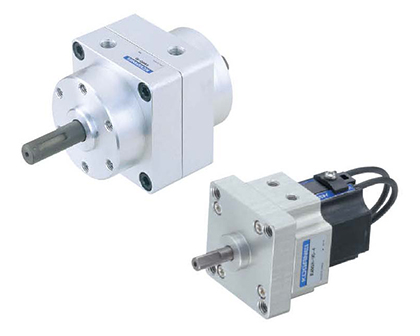

This compact aluminum alloy body series is lightweight and provides easy mounting and installation. This series provides OEM customers flexibility for installation with 5 different mounting options available. Six different rotation degree specifications from 90 ° to 275 °. The Selection Guide provides a summary of the RAN Series Vane Type Rotary Actuators 5 different variations available. RAN Series Rotary Actuators offer:

• Double Acting Single Vane Type
• Four Mounting Options for Easy Installation
• 90° to 275° Rotation Options
• Utilizes 4mm Solid State Sensors
• Low Air Leak and Long Life Operation
• RoHS Compliance

Operations
Double Acting Vane
