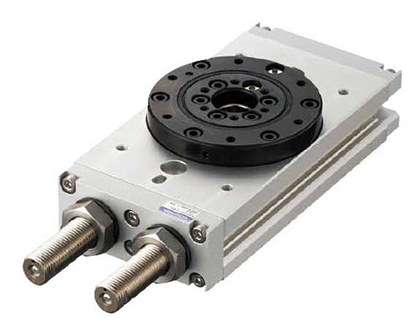

Equipped with a cross roller bearing for high accuracy and rigidity. Achieve smooth oscillating operation from low to high speeds 0.2 to 7.0 s/90 ° up to a max 180 ° rotation degree specification. This series boasts the most compact dimension size available and allows a workpiece to be mounted directly to bearing and low center of gravity. Large diameter hollow shaft makes piping and wiring easy. The Selection Guide provides a summary of the RAF Series Piston Type Rotary Actuators 6 different variations available. RAF Series Rotary Actuators offer:

• Double Acting Precision Rack and Pinion with Cross Roller Bearing Guided Table
• Precision Manufacturing Allows for Smooth Operation from Low to High Speed
• Compact Design Allows for High Torque Outputs in Many Types of Installations
• Utilizes Patented Pressure Resistant Linear Orifice Shock Absorbers
• Location Pin Hole Standard for Precision Installations
• RoHS Compliance

Operations
Double Acting Double Piston
