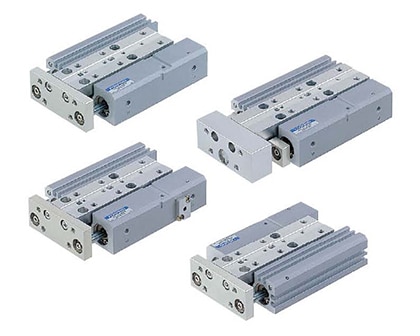

Developed mainly for movement in the Z Axis available. The thin, lightweight, and compact body offers the best match for lifters, stoppers, and pick-and-place on different levels in automated manufacturing system. Cleanroom compatible versions available. Achieve accuracy, rigidity, and stroke travel linearity, in response to precision machining and requirements on assembly at the best price. The Selection Guide provides a summary of the 32 different ZS Series- Z Slider – Precision Guided Actuators available. ZS Series Precision Guided Actuators offer:

• Double Acting Slide with Guide Rail
• Low Profile Twin Bore Designed for Z Axis Movements
• Standard Configurations Include Stroke Adjustment, End Keep, Buffer, and Symmetrical
• Designed to Support Metal Stops and Patented Linear Orifice Shock Absorber
• Utilizes standard integrated 4mm sensor groove
• RoHS Compliance

Operations
Double Acting
Double Acting with Buffer
Double Acting with Buffer Spring & End Keep
Double Acting with End Keep
Double Acting Symmetric
Double Acting Symmetric with Buffer
Double Acting Symmetric with Buffer & End Keep
Double Acting Symmetric with End Keep
