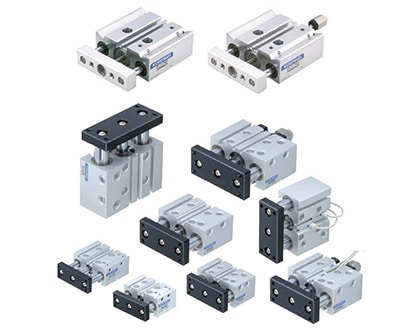

Designed for both Cleanrooms and Conveyor applications. Four types of installation are possible, in response to the installation environment, and piping location can also be selected in two different directions. The Selection Guide provides a summary of the 23 different SGDA Series Precision Guided Actuators available. SGDA Series Precision Guided Actuators offer:

• Double Acting Cylinder with Guide Rods
• Slide Bearings or Rolling Bearings Available
• Standard Configurations Include Stroke Adjustment, End Keep, and Heat Resistant
• Multiple Port Locations and Mounting Options Allows for Easy Installation
• Utilizes standard integrated 4mm sensor groove
• RoHS Compliance

Operations
Double Acting Clean System with Dust Collection Port
Double Acting End Keep Head Side or Rod Side
Double Acting Stroke Adjusting
Double Acting with Guides
Double Acting with Guides Low Speed
Double Acting with Guides Push Stroke Adjustment
