F Series - Indirect Acting Solenoid Valves

F_series_solenoid_valve_manifold

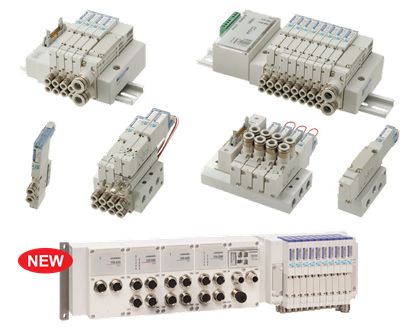

100+ million cycle life tested and rated directional control valve series that can switch direction of the cylinder ports and from double to single solenoid without any additional parts needed. The Selection Guide provides a summary of the 132 F Series – Indirect Acting Solenoid Valves. The F Series variations include:

  • Direct Wiring, D-Sub, Flat Cable or Serial Communication
  • Inline, Subbase, Mono Block and Split Type Manifold
  • Switchable Output Ports Direct on Valve or Manifold
  • Tandem 3-Way or Selectable Double / Single Solenoid Options
  • NEW: I/O Terminal for Integrated Inputs and Outputs
  • RoHS Compliance

Operation

2×3/2 Double Tandem NC / NC 5/3 Double Closed Center
2×3/2 Double Tandem NC / NC Low Current 5/3 Double Closed Center Clean System
2×3/2 Double Tandem NC / NO 5/3 Double Exhaust Center
2×3/2 Double Tandem NC / NO Low Current 5/3 Double Exhaust Center Clean System
2×3/2 Double Tandem NO / NO 5/3 Double External Pilot Closed Center
2×3/2 Double Tandem NO / NO Low Current 5/3 Double External Pilot Closed Center Clean System
5/2 Single 5/3 Double External Pilot Closed Center Vacuum Clean System
5/2 Single External Pilot 5/3 Double External Pilot Exhaust Center
5/2 Single External Pilot Vacuum 5/3 Double External Pilot Exhaust Center Clean System
5/2 Single Low Current 5/3 Double External Pilot Pressure Center
5/2 Single Low Current External Pilot 5/3 Double External Pilot Pressure Center Clean System
5/2 Switchable Double 5/3 Double Low Current Closed Center
5/2 Switchable Double Clean System 5/3 Double Low Current Exhaust Center
5/2 Switchable Double External Pilot 5/3 Double Low Current External Pilot Closed Center
5/2 Switchable Double External Pilot Clean System 5/3 Double Low Current External Pilot Exhaust Center
5/2 Switchable Double External Pilot Vacuum 5/3 Double Low Current External Pilot Pressure Center
5/2 Switchable Double External Pilot Vacuum Clean System 5/3 Double Low Current Pressure Center
5/2 Switchable Double Low Current External Pilot 5/3 Double Pressure Center
5/2 Switchable Double Low Current 5/3 Double Pressure Center Clean System



Selection Chart
