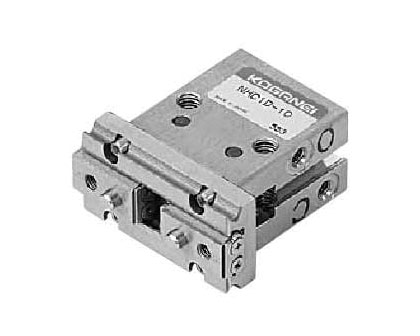

Designed for high rigidity and high accuracy chucking and gripping. This series is 40% lighter in weight 45% smaller physical dimension than previous models of same bore and stroke. Robots take advantage of this series by reducing the effect of overall payload for end of arm effectors (EOATS). Use of high-rigidity linear guide achieves repeatability of ±0.01mm [±0.0004in.] or less. Centering accuracy is also ±0.07mm [±0.0028in.] or less. The Selection Guide provides a summary of the 4 different NHC Series Parallel Pneumatic Gripper variations available. NHC Series Grippers offer:

• Parallel Type with High Precision, Preloaded Linear Guides
• Most Compact Envelope
• Lightest Weight
• Dowel Locating Holes Standard for Precision Installations
• Utilizes Standard Integrated 4mm Sensor Groove
• RoHS Compliant

Operation
Double Acting Parallel Linear Guide
