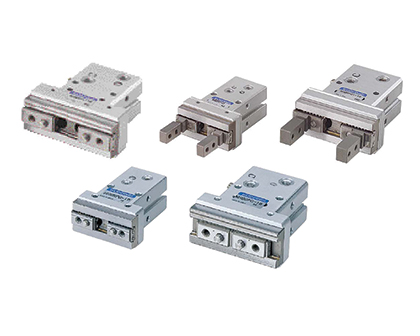

Designed for chucking applications. The lever portion uses a linear guide for long operating life, high precision, long lever travel gripping, and overhang gripping. Gripping position repeatability ±0.01mm [±0.0004in.]. Centering accuracy is also ±0.07mm [±0.0028in.]. Magnet for sensor switch is standard. The Selection Guide provides a summary of the 17 different NHBD-PG Series Pneumatic Gripper variations available. NHBD-PG Series Grippers offer:

• Parallel Type with High Precision, Preloaded Linear Guides
• Double Acting, Single Acting or Mechanically Operated Available
• Long Stroke Options
• Fingers Attachment Options
• Utilizes Standard Integrated 4mm Sensor Groove
• RoHS Compliant

Operation
Double Acting Parallel Linear Guide
Double Acting Parallel Linear Guide with Fingers
Double Acting Parallel Linear Guide Long Stroke Single Acting Normally Closed Parallel Linear Guide Mechanical
Single Acting Normally Closed Parallel Linear Guide
Single Acting Normally Closed Parallel Linear Guide Long Stroke Mechanical
Single Acting Normally Closed Parallel Linear Guide with Rubber Cover Mechanical
Single Acting Normally Closed Parallel Linear Guide with Fingers Mechanical
Single Acting Normally Open Parallel Linear Guide
Single Acting Normally Open Parallel Linear Guide with Fingers
