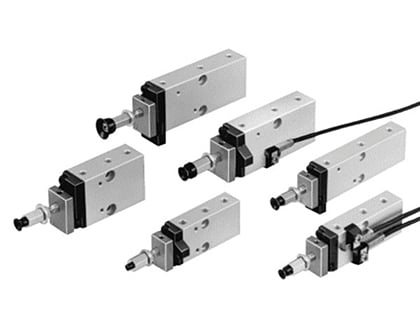

A compact actuator that is delivered to you with an integrated vacuum cup. With a hollow rod structure and the very short overall length, these Cylinders have been designed for easier installation with complete tube connection on one side. With a very little movement, these Cylinders securely cover vacuum pick up, transfer and other functions. The Selection Guide provides a summary of the 4 different BDAV Series Vacuum Pad Equipped Cylinder variations available. BDAV Series Vacuum Pad Equipped Cylinder offer:

• Hollow Rod Structure Minimizes Total Length
• Integrated Vacuum-in Cylinder
• All Piping Located on One Side
• Mount to Walls and Mechanical Devices
• Space Saving
• RoHS Compliance

Operations
Double Acting Vacuum Pad Equipped
Double Acting Vacuum Pad Equipped with Switches
